{canscope}

CAN bus sniffer and SAE J1939 protocol analyzer. Reads CAN frames in candump format, decodes them using a J1939 Digital Annex (xlsx or csv), and presents results in an interactive terminal UI or as JSON output.

Features

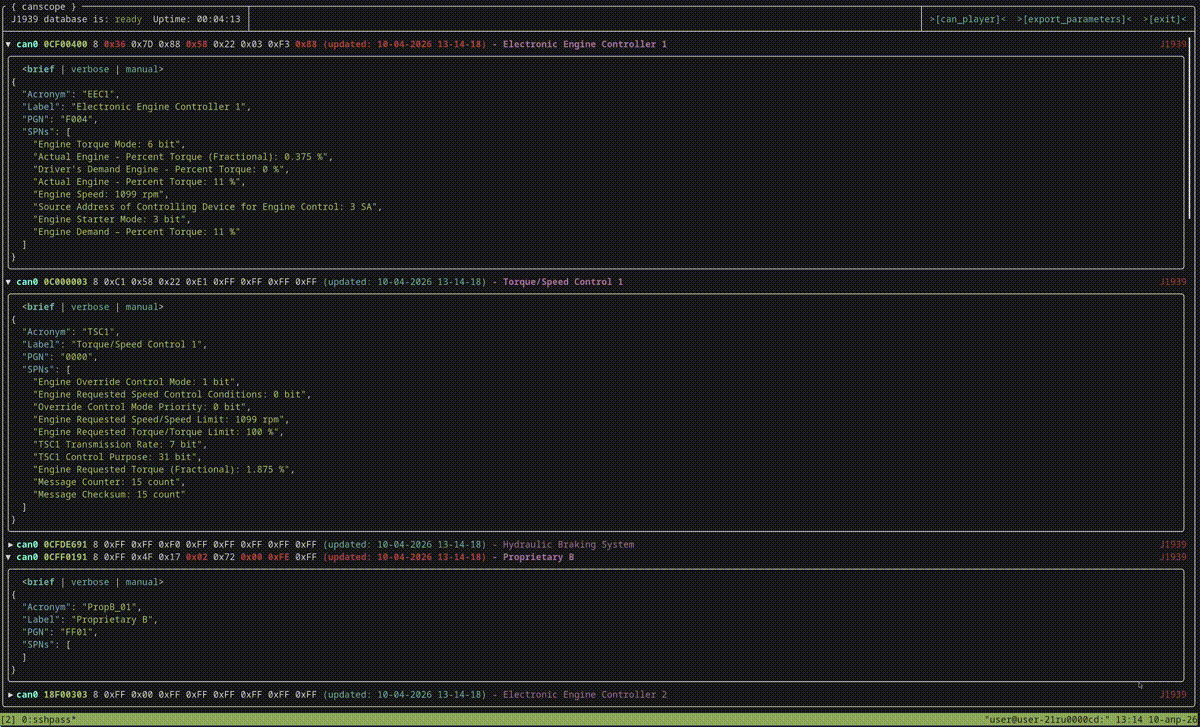

TUI mode - full-screen interactive terminal interface (FTXUI). Multiple display modes per CAN ID: deployed, brief, verbose, manual, little-endian
Headless mode - JSON output to stdout or file, for scripting and automation
Recording - decoded J1939 SPN values saved to SQLite database with gzip compression and batch flushing
J1939 decoding - PGN/SPN lookup, bit-level value extraction from payload. Supports xlsx and csv input formats
CAN playback - replay recorded CAN frames
Custom SPN configuration - per-parameter settings, parameter export
Real-time - 30 fps UI refresh

Build

Requirements:

clang++ with C++23 support
CMake >= 3.13
Ninja
System libraries: boost (signals2, spirit, phoenix, regex), sqlite3, zlib, icu

Dependencies fetched automatically via CMake FetchContent:

FTXUI - terminal UI framework
tiny-process-library - subprocess management
sqlite_modern_cpp - modern C++ SQLite wrapper
xlnt - xlsx reading
lely-core - CANopen protocol stack
fmt - text formatting
nlohmann/json - JSON library
clipp - CLI argument parsing

Available targets

make list              # Show all targets

make build             # Native build (dynamic linking)
make build_static      # Native build (static linking)
make install           # Install to PREFIX (default /usr/local), requires patchelf
make install_static    # Install static binary to PREFIX

make docker-run ARGS='...'       # Build and run in Docker (cross-platform)
make build_arm64                 # Cross-compile for arm64 (dynamic)
make build_arm64_static          # Cross-compile for arm64 (static)

make clean             # Remove all build artifacts

Native build

make build
./build/native/canscope -e "candump can0" -j1939-xlsx thirdparty/j1939da_2018.xlsx
# or with CSV (faster parsing)
./build/native/canscope -e "candump can0" -j1939-csv thirdparty/j1939da_2018.csv

Docker (cross-platform)

Works on Linux, macOS (?), and Windows (?). Requires only Docker and Make.

# TUI mode - local CAN interface
make docker-run ARGS='-e "candump can0" -j1939-xlsx thirdparty/j1939da_2018.xlsx'

# TUI mode - remote CAN interface via SSH (no data if will ask password - use public key access or sshpass utility)
make docker-run ARGS='-e "ssh user@remote candump can0" -j1939-xlsx thirdparty/j1939da_2018.xlsx'

# Headless mode - create report about collected PGNs and SPNs
make docker-run ARGS='-hl -e "candump can0" -j1939-xlsx thirdparty/j1939da_2018.xlsx -of output.json'

Cross-compile for arm64

make build_arm64           # dynamic linking
make build_arm64_static    # static linking

Requires Docker. SSH keys from ~/.ssh and /etc/hosts are forwarded into the build container for fetching private git dependencies.

Usage

# TUI mode (default)
canscope -e "candump can0" -j1939-xlsx thirdparty/j1939da_2018.xlsx

# Headless - JSON to stdout
canscope -hl -e "candump can0" -j1939-xlsx thirdparty/j1939da_2018.xlsx

# Headless - JSON to file
canscope -hl -e "candump can0" -j1939-xlsx thirdparty/j1939da_2018.xlsx -of output.json

# Read from stdin (pipe)
candump can0 | canscope -j1939-xlsx thirdparty/j1939da_2018.xlsx

# Record to SQLite database
canscope -rec -db recording.db -e "candump can0" -j1939-xlsx thirdparty/j1939da_2018.xlsx

# Record + TUI
canscope -rec -db recording.db -tui -e "candump can0" -j1939-xlsx thirdparty/j1939da_2018.xlsx

Note: J1939 decoding has only been tested with the Digital Annex 2018 edition. Other editions may work but are not guaranteed.

CLI flags

Flag	Long form	Description
`-j1939-xlsx`		J1939 Digital Annex xlsx file
`-j1939-csv`		J1939 Digital Annex csv file (faster parsing)
`-e`	`--execute-command`	Command to read CAN frames from (e.g. `"candump can0"`)
`-hl`	`--headless`	Headless mode (no TUI)
`-of`	`--output-file`	Output file path (headless mode)
`-rec`	`--record`	Record decoded values to SQLite
`-db`	`--database`	SQLite database path (required with `-rec`)
`-tui`		Show TUI alongside recording
`-h`	`--help`	Show help

Roadmap

NMEA 2000 protocol support - NMEA 2000 decoding using canboat PGN database (JSON). Same 29-bit CAN ID as J1939, requires Fast Packet protocol implementation
CANopen protocol support - CANopen decoding alongside J1939 (11-bit CAN ID, SDO/PDO/NMT)
Other small features and enhancements - UI improvements, performance optimizations, additional export formats
